Airfoil 1kW

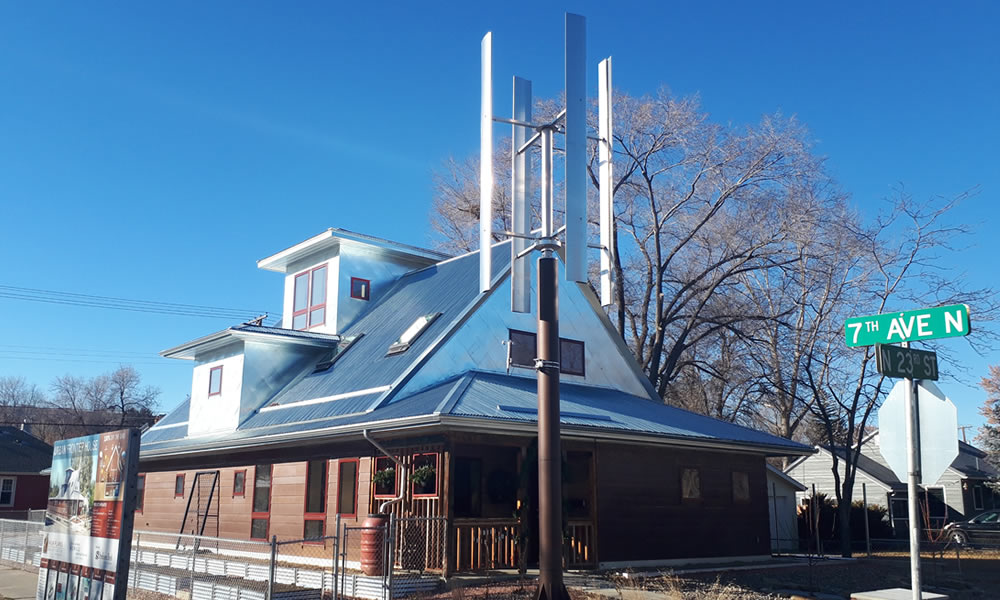

The house was designed to be utility independent by combination of solar and wind generation, and it became real with Airfoil 1K.
Past Projects
-
September 2015
Montana1kW (Storage type: Residential power supply)
The first 1kW type. House of the architectural office president.
Installed as an indoor power supply in front of the entrance of a house with the concept of supplying water and electricity all on their own.
System configuration
| Windmill | Structure | monopole |
|---|---|---|
| Blade Length | 3.5m (11.48ft) | |
| Blade Rotation Diameter | 2.1m (6.89ft) | |
| Number of Blades | 4 | |
| Blade Width | 300mm (1ft) | |
| Blade Material | Anti-Rusting Aluminum | |
| Weight | 60kg (132lb) | |
| Total Height with Pole | 7m (22.96ft) | |
| Generator | Specifications | PMSG |
| Rated Output (at 12 m/s wind velocity) | 1KW | |
| System Function | Minimum Rotating Wind Velocity | 1.6m/sec (3.6mph) |
| Kick-in Wind Velocity | 2.8m/sec (6.3mph) | |
| Survival Wind Velocity | 60m/sec (134.4pmh) | |
| Voltage | DC output | |
| Battery (Owner supplied, reference only) | 12V60Ah x 10 | |
| Grid Connection | No | |
| System | Independent | |
| Solar Panel | Option | |
| Co-Operation with Utility * | Option | |
| Typical Application | Cell Tower |
The specification is subject to change without notice.
* This is the device to switch to utility power when the wind turbine output is not enough.
